Anti-rust Cross Concertina Wire With Clips BTO22 10 - 99 Rolls
Razor Barbed Wire Description
Razor wire, also known as barbed tape, is a central strand of high tensile core wire and a punched steel tape with sharp barbs at close intervals uniformly. The razor tape is cold crimped tightly onto the spring steel core, and finally into rolls for easy transport and deployment. For long lasting protection in various high security applications, core wires are generally made of galvanized steel or stainless steel wires while blades are typically made of galvanized steel, stainless steel or aluminized zinc steel sheets.
Characterized by easy installation, razor wire offers both a visual deterrence and a physical barrier that is hard to climb over,thereby effectively keeping out illegal intruders. Razor wire applies to a wide range of applications to meet different security grade requirements.
Razor Barbed Wire Advabtages
Anti-climb;
High-strength steel core very difficult to cut off;
Powerful security fence barriers with neat appearance;
Packed in rolls easy for transport;
Extremely simple to install.

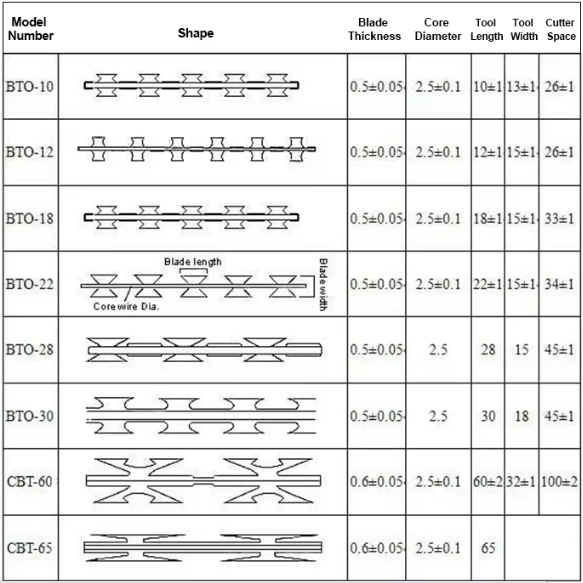

Razor Barbed Wire Specification
| Wire diameter | 2mm 2.5mm 2.8mm ( customized ) |
| Thickness | 0.5 mm - 0.6 mm. |
| Razor length | 12 mm - 21 mm. |
| Razor width | 13 mm - 21 mm. |
| Barb spacing | 26 mm - 100 mm. |
| Outside diameter | 450 mm - 960 mm. |
| Number of loops | 33 mm - 102 mm. |
| Standard length per coil | 8 m - 16 m. |
| Razor barbed types | Single coil and cross type. |
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8m | CBT-60/65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60/65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60/65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60/65 | Single coil |
| 450mm | 56 | 8-9m | BTO-12/22/25/30 | Cross type |
| 500mm | 56 | 9-10m | BTO-12/22/25/30 | Cross type |
| 600mm | 56 | 10-11m | BTO-12/22/25/30 | Cross type |
| 600mm | 56 | 8-10m | BTO-12/22/25/30 | Cross type |
| 700mm | 56 | 10-12m | BTO-12/22/25/30 | Cross type |
| 800mm | 56 | 11-13m | BTO-12/22/25/30 | Cross type |
| 900mm | 56 | 12-14m | BTO-12/22/25/30 | Cross type |
| 960mm | 56 | 13-15m | BTO-12/22/25/30 | Cross type |
| 980mm | 56 | 14-16m | BTO-12/22/25/30 | Cross type |
Razor Barbed Wire Production Process
Razor Barbed Wire Application

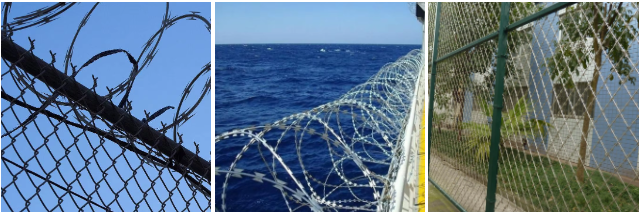

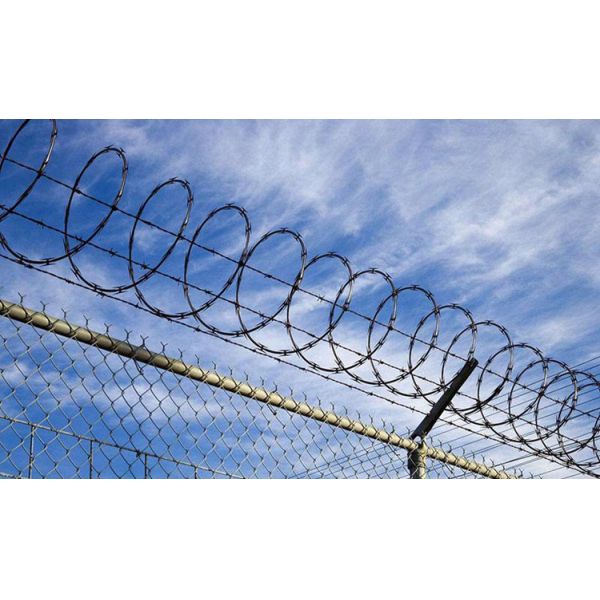

Razor Mesh is installed as high security fencing throughout the world at airports, water reservoirs, warehouses,electrical sub-stations, border fences, oil depots, electrical sub-stations and factories.
In restricted field, airports fencing, prisons protection, detention houses, government buildings and other national security facilities.

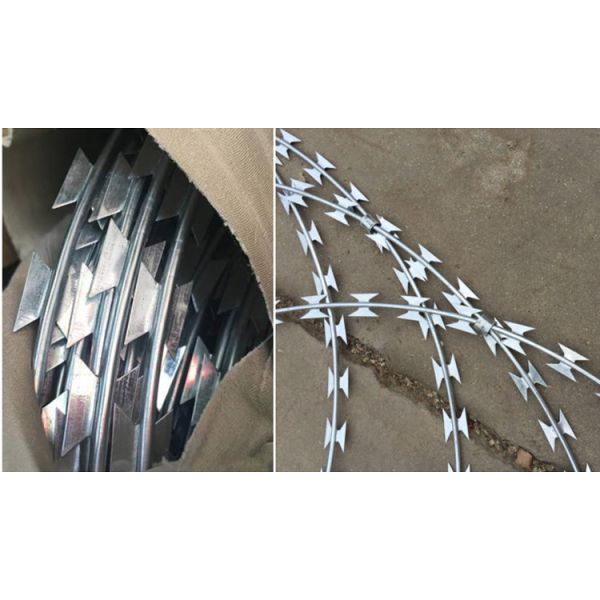

Razor Barbed Wire Package
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport and further installation.
